功能用途：
Electro hydraulic servo universal testing machine double air direction
Function purpose:
It is suitable for tensile test of metal sheet, composite material, fastener (nonmetal), wire rod, cable (nonmetal), reinforcement (nonmetal), etc.
Functional features:
Double space oil cylinder lower structure, high rigidity 6-column load frame configuration, fully closed "I" shaped jaws; upper space stretching, lower space compression, easy to operate, in which the space between the test bench and the lower crossbeam is compression space, which can achieve compression, bending, shear and other compression tests on the sample; the space between the lower crossbeam and the upper crossbeam is tension space, mainly for the tensile test on the sample.
Hotline：4008-482-582
Free consultation

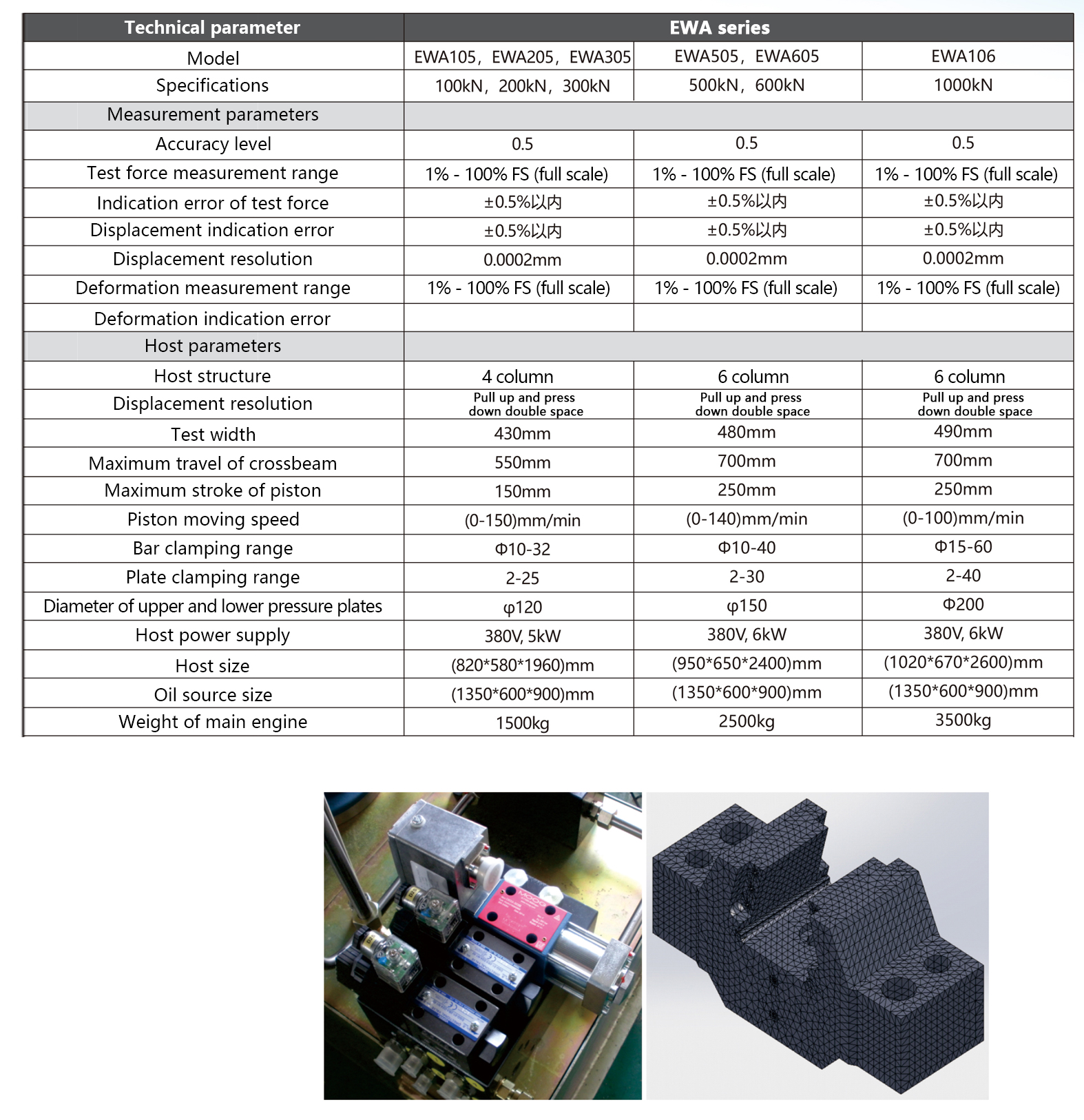

Technical parameter Functional use Performance characteristics |
It is suitable for tensile test of metal sheet, composite material, fastener (nonmetal), wire rod, cable (nonmetal), reinforcement (nonmetal), etc.
1. Adopt double space oil cylinder lower structure, high rigidity 6-pillar load frame configuration, fully closed jaw;
2. The upper space is stretched, the lower space is compressed, and the operation is convenient. The compression
space is between the test bench and the lower crossbeam, which can realize the compression, bending, shearing
and other compression tests on the sample. The tensile space is between the lower crossbeam and the upper
crossbeam, which mainly carries out the tensile tests on the sample;
3. Reliable servo control hydraulic actuation system;
4. The closed-loop servo control system is composed of controller, servo valve, load sensor, displacement sensor,
extensometer and computer. It can automatically and accurately control the test process and automatically
measure the test parameters such as test force, displacement and deformation;
5. Convenient test setup and handset;
6. Multifunctional and easy to operate software, equipped with rich and increasing test method standard library
(ASTM, ISO, DIN, en, BS, etc.);
7. Complete set of optional clamps, accessories, environmental system and extensometer;
8. Compact and ergonomic integrated operation platform;
9. Stepless loading and "fast back" hydraulic valve to improve working efficiency;
10.Beam displacement limit protection, force overload protection, overheat protection, voltage overload
protection, etc;
11.Equipped with standard independent safety cover;
12.Durable test space protection.
Electro hydraulic servo universal testing machine
|
